materiał
-
EN-GJS-500-7 PN-EN
1563:2000
-
owiercanie - PN-EN
1092-2:1999
-
ciśnienie pracy 1.0 -
1.6 MPa
-
zabezpieczenie antykorozyjne
|

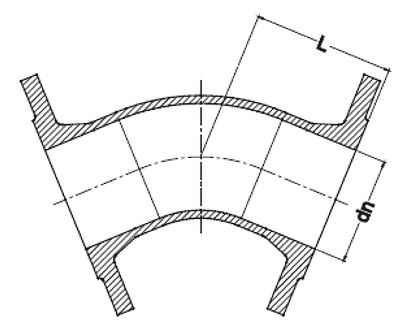

dn |
L |
Masa |
L |
Masa |
L |
Masa |
L |
Masa |
|
[mm] |
[mm] |
[kg] |
[mm] |
[kg] |
[mm] |
[kg] |
[mm] |
[kg] |
|
kąt |
11° |
22,5° |
30° |
45° |
|
80 |
70 |
10 |
90 |
10 |
100 |
10 |
110 |
10 |
|
100 |
65 |
12 |
75 |
12 |
85 |
12 |
100 |
12 |
|
150 |
80 |
19 |
90 |
20 |
100 |
20 |
125 |
18 |
|
200 |
40 |
26 |
105 |
29 |
120 |
29 |
145 |
27 |
|
250 |
50 |
41 |
95 |
42 |
140 |
42 |
150 |
54 |
|
300 |
90 |
60 |
125 |
60 |
150 |
60 |
180 |
77 |
|
400 |
125 |
58 |
145 |
67 |
180 |
73 |
220 |
95 |
|
500 |
135 |
85 |
180 |
99 |
200 |
109 |
250 |
143 |
|
600 |
155 |
157 |
190 |
182 |
220 |
212 |
290 |
210 |
|
800 |
|
330 |
|
428 |
|
493 |
450 |
400 |
|
|
|
|
|
|
|
