materiał
-
EN-GJS-500-7 PN-EN
1563:2000
-
owiercanie - PN-EN
1092-2:1999
-
ciśnienie pracy 1.0 -
1.6 MPa
-
zabezpieczenie antykorozyjne
|
|
|

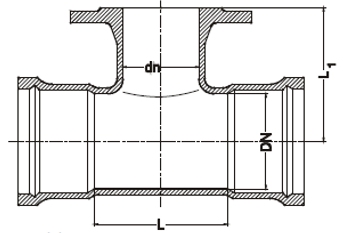

DN |
dn |
L |
L1 |
Masa |
DN |
dn |
L |
L, |
Masa |
DN |
dn |
L |
L1 |
Masa |
|
[mm] |
[kg] |
[mm] |
[kg] |
[mm] |
[kg] |
|
80 |
80 |
170 |
165 |
13 |
250 |
100 |
205 |
270 |
40 |
400 |
200 |
330 |
380 |
105 |
|
100 |
50 |
155 |
155 |
13 |
150 |
260 |
280 |
45 |
250 |
390 |
390 |
114 |
|
80 |
175 |
175 |
15 |
200 |
315 |
290 |
53 |
300 |
420 |
400 |
117 |
|
100 |
190 |
180 |
16 |
250 |
380 |
300 |
62 |
400 |
560 |
420 |
158 |
|
150 |
80 |
180 |
200 |
21 |
300 |
80 |
185 |
295 |
48 |
500 |
100 |
215 |
420 |
107 |
|
100 |
200 |
205 |
23 |
100 |
205 |
300 |
50 |
150 |
275 |
430 |
132 |
|
150 |
260 |
220 |
28 |
150 |
260 |
310 |
56 |
200 |
330 |
440 |
138 |
|
200 |
80 |
180 |
225 |
29 |
200 |
320 |
320 |
65 |
300 |
450 |
460 |
172 |
|
100 |
200 |
230 |
31 |
300 |
435 |
340 |
86 |
500 |
650 |
500 |
246 |
|
150 |
260 |
245 |
37 |
400 |
80 |
190 |
355 |
85 |
600 |
200 |
340 |
500 |
197 |
|
200 |
320 |
260 |
43 |
100 |
210 |
360 |
87 |
600 |
770 |
580 |
345 |
|
250 |
80 |
185 |
265 |
38 |
150 |
270 |
370 |
100 |
|
|
|
|
|
|
|
|
|
